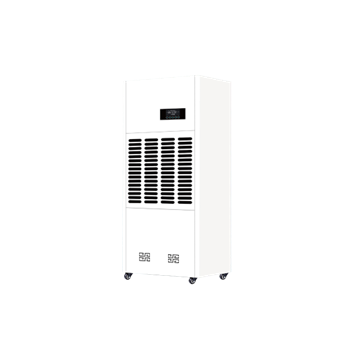

Constant temperature and humidity machine
model：ASM-C180
Product parameters
Applicable area (square meters, height of 3m) 30-50 square meters
5 horsepower
The overall performance of the air conditioning unit has a cooling capacity of Kw12kw Dehumidifier Kg/h12kg/h
Heating capacity electric heating kw9.3kw
Airflow m ³/h2000
External residual pressure Pa50Pa
Unit noise dB (A) 60db (A)
PCL intelligent touch screen controller
Temperature control range and accuracy: ℃ 18~30 ℃, accuracy ± 1 ℃
Humidity control range and accuracy% RH50-70%, accuracy ± 5%
Power supply 380V -50Hz three-phase five wire system
The total capacity of the unit is Kw10.4kW Number of compressors in the refrigeration system: 1
Nominal input power (kW) 3.6KW
Refrigerant type R22
Throttle method thermal expansion valve
Electric heating type PTC electric heating type
Power (kW) 3KW
Humidifier type electrode type
Humidification rate (kg/h) 5kg/h
Power (kW) 3.8kw
Inlet pipe diameter
Indoor unit, outdoor unit, external dimensions: length x width x height (cm), length 650 * width 500 * height 1470
Dimensions: length x width x height (cm), length 1000 * width 340 * height 1250
Group 1
Connecting pipe size High pressure pipe (mm) 10mm
Low pressure pipe (mm) 19mm
5 horsepower
The overall performance of the air conditioning unit has a cooling capacity of Kw12kw Dehumidifier Kg/h12kg/h
Heating capacity electric heating kw9.3kw
Airflow m ³/h2000
External residual pressure Pa50Pa
Unit noise dB (A) 60db (A)
PCL intelligent touch screen controller
Temperature control range and accuracy: ℃ 18~30 ℃, accuracy ± 1 ℃
Humidity control range and accuracy% RH50-70%, accuracy ± 5%
Power supply 380V -50Hz three-phase five wire system
The total capacity of the unit is Kw10.4kW Number of compressors in the refrigeration system: 1
Nominal input power (kW) 3.6KW
Refrigerant type R22
Throttle method thermal expansion valve
Electric heating type PTC electric heating type
Power (kW) 3KW
Humidifier type electrode type
Humidification rate (kg/h) 5kg/h
Power (kW) 3.8kw
Inlet pipe diameter
Indoor unit, outdoor unit, external dimensions: length x width x height (cm), length 650 * width 500 * height 1470
Dimensions: length x width x height (cm), length 1000 * width 340 * height 1250
Group 1
Connecting pipe size High pressure pipe (mm) 10mm
Low pressure pipe (mm) 19mm
Product introduction
Ansiman dehumidifier adopts Ansiman dehumidifier system, which integrates the advantages of high efficiency, energy saving, safety, reliability, smooth operation, wide adjustment range, etc. It is widely used in household, large warehouse, manufacturing workshop, underground garage, precision instrument and other industrial places.
Product advantages
- Long service life： With the appearance design of Ansiman dehumidifier and the patented technology of utility model, the selection of high-performance core components, together with exquisite manufacturing technology and strict performance testing, the equipment can be guaranteed to operate stably, reliably and have a longer service life in harsh environments.
- Low carbon and energy saving：Under the same dehumidification capacity, the energy consumption is about 20% lower. Ansiman super efficient vortex cooling water energy-saving unit is used in large space, which can save up to 40% of energy consumption。
- new and high-tech product：Ansiman dehumidifier has won the certification of "high-tech product", and its technical strength has advantages in the industry。
- Ultra high cost performance： Ansiman's advanced ERP management system effectively integrates supply chain resources and realizes large-scale production to provide customers with dehumidification products with "leading technology, exquisite workmanship, excellent quality and reasonable price"。
