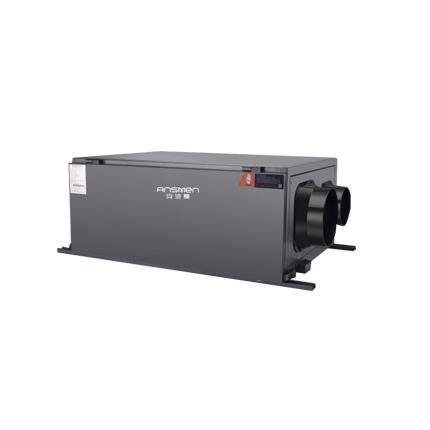

Fresh air purification and dehumidification integrated machine
![](http://www.ansmenworld.com/usr/themes/Asn/images/jm08.png)
model:ASM-XX100L
Product parameters
Dehumidification capacity 90L-120L/day
Dehumidification air volume 850-1180m ³/ H
Fan form stepless speed regulation
Air supply residual pressure 150PA
Return air volume 680-800m ³/ H
Fresh air volume 0-400m ³/ H
Power/current 750W-1180W3.4A-5.3A
Voltage frequency 220V/50Hz
Noise<45dB
Compressor DC variable frequency/R410A
Return air sensor five in one multifunctional
Test condition 30 ° C 80% 27 ° C 60%
New air valve built-in
Throttling method electronic expansion valve Positive pressure drainage with drainage pipe diameter/ Φ 20
Filtering module (standard) initial/medium/high efficiency
Purification module UV sterilization/negative ions
Fresh air outlet Φ 150mm
Return air outlet Φ 200mm
Air supply outlet Φ 200mm
Heat exchanger hydrophilic aluminum foil copper tube
External dimensions 1090 * 659 * 310mm
Dehumidification air volume 850-1180m ³/ H
Fan form stepless speed regulation
Air supply residual pressure 150PA
Return air volume 680-800m ³/ H
Fresh air volume 0-400m ³/ H
Power/current 750W-1180W3.4A-5.3A
Voltage frequency 220V/50Hz
Noise<45dB
Compressor DC variable frequency/R410A
Return air sensor five in one multifunctional
Test condition 30 ° C 80% 27 ° C 60%
New air valve built-in
Throttling method electronic expansion valve Positive pressure drainage with drainage pipe diameter/ Φ 20
Filtering module (standard) initial/medium/high efficiency
Purification module UV sterilization/negative ions
Fresh air outlet Φ 150mm
Return air outlet Φ 200mm
Air supply outlet Φ 200mm
Heat exchanger hydrophilic aluminum foil copper tube
External dimensions 1090 * 659 * 310mm
Product introduction
Ansiman dehumidifier adopts Ansiman dehumidifier system, which integrates the advantages of high efficiency, energy saving, safety, reliability, smooth operation, wide adjustment range, etc. It is widely used in household, large warehouse, manufacturing workshop, underground garage, precision instrument and other industrial places.
Product advantages
- Long service life: With the appearance design of Ansiman dehumidifier and the patented technology of utility model, the selection of high-performance core components, together with exquisite manufacturing technology and strict performance testing, the equipment can be guaranteed to operate stably, reliably and have a longer service life in harsh environments.
- Low carbon and energy saving:Under the same dehumidification capacity, the energy consumption is about 20% lower. Ansiman super efficient vortex cooling water energy-saving unit is used in large space, which can save up to 40% of energy consumption。
- new and high-tech product:Ansiman dehumidifier has won the certification of "high-tech product", and its technical strength has advantages in the industry。
- Ultra high cost performance: Ansiman's advanced ERP management system effectively integrates supply chain resources and realizes large-scale production to provide customers with dehumidification products with "leading technology, exquisite workmanship, excellent quality and reasonable price"。
